Glass Fabrics

Glass Fibre is a material consisting of numerous extremely fine fibres of Glass. Woven Glass Fibre fabrics and Woven Rovings are one of the most popular reinforcements for composite applications.



The Benefits;

  • Non-Conductive properties
  • Resistant to corrosion
  • Weight advantages
  • High strength
  • Affordable
GLASS FABRICS
Type Standard width Weight Weave Thread Count
fd/cm		 Construction Thickness Roll length
  cm g/m2   Warp  Weft Warp  Weft mm Linear meter
CMGY 110 100 110 Plain 16 14.4 EC 9 34 EC 9 34 0.12 100
CMGY 163 100 163 Twill 2/2 12 11.4 EC 9 68 EC 9 68 0.14 100
CMGY 195 100 195 Twill 2/2 8.0 6.0 EC 9 136 EC 9 136 0.18 100

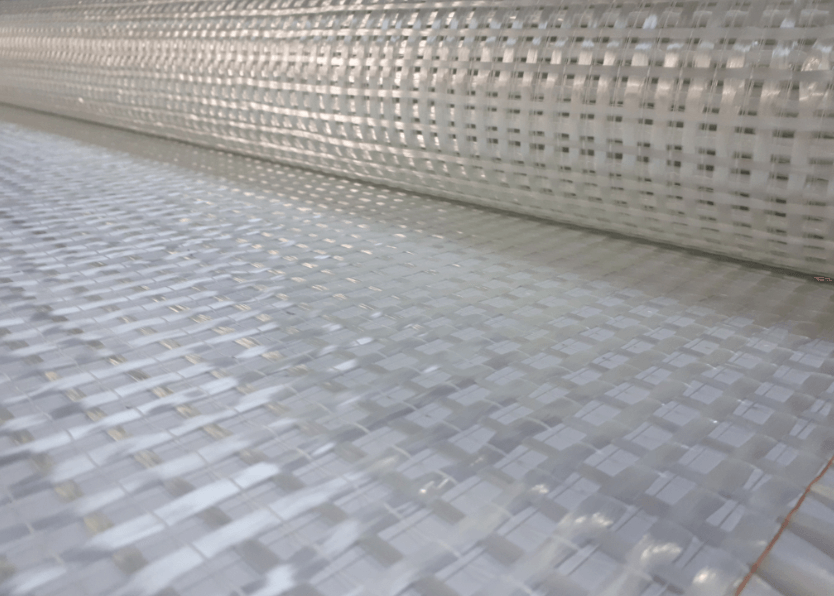

CM GMSH 220 100 220 MESH 1.8 1.8 1200 tex+TP 1200 tex+TP 0,35 100
CMGR 300 100 300 Plain 5.0 5.0 300 tex 300 tex  0.28 100
CMGR 580 100 580 Plain 5.0 4.6 600 tex 600 tex 0.50 50
