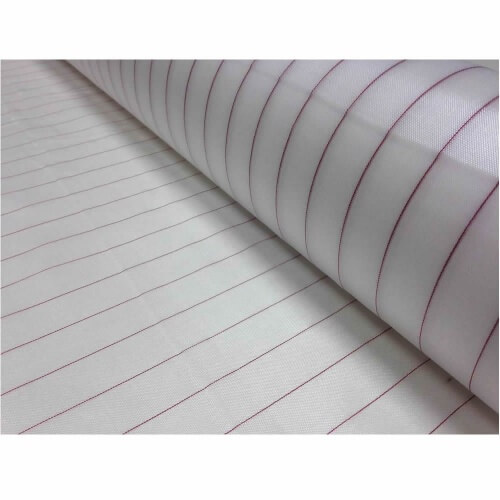

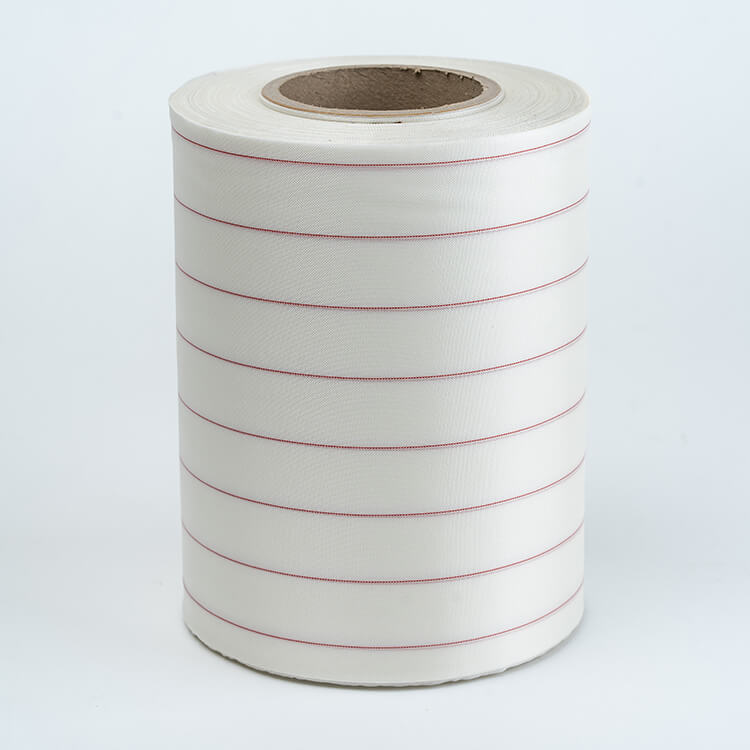

High Tenacity Polyester Peel Ply Fabric, 90 gsm Poliamid Peel Ply, Nylon 66 Peel Ply, 110 gsm Plain High Tenacity

Peel Ply Fabrics

A High Tenacity Polyester and PA 66(nylon 66) yarn fabrics, designed to be used with epoxy, phenolic and polyester composite systems. Leaves a rough surface impression for primary and secondary bonding. Free of release agent and silicon. A synthetic fibre that offers a peelply surface free from contamination.



The Benefits

  • ·Using peel ply means that no sanding is needed
  • ·After the resin has dried the Peel Ply has to be removed in a sharp angle to leave an evenly rough surface behind
  • ·Adding a layer of peel ply will also help to compact and consolidate any repair work and helps to feather out the edges of the repair
PEEL PLY FABRICS
Type Standard width Weight Weave Thread Count
fd/cm		 Construction Thickness Roll length
  cm g/m2   Warp  Weft Warp  Weft mm Linear meter
CMPPL 90 100/165 90 Plain 18,0 14,0 250 Denier
HT Polyester		 250 Denier
HT Polyester		 0.10 200
CMPPL 105PA 100/152 105 Plain 22,0 18,0 210 Denier
Nylon 66		 210 Denier
Nylon 66		 0.12 100
